Calibration Workflow#

[workflow].mode = "calibration" runs a parameter-estimation campaign. Instead of executing one fixed simulation, HydroModPy repeatedly proposes parameter values, runs candidate simulations, scores them, and records the calibration history.

Use it when the question is: “Which parameter values best explain the observations or synthetic targets?”

Functional Role#

The calibration workflow sits on top of the simulation workflow:

base configuration
    -> prepare reusable context
    -> ask optimizer for parameters
    -> inject parameter values
    -> run candidate simulation
    -> extract observable(s)
    -> compute objective
    -> tell optimizer result
    -> persist calibration history
    -> optionally promote best runs

It is appropriate for:

  • estimating hydraulic conductivity, storage, boundary conductance, or other exposed model parameters;

  • comparing optimization methods;

  • twin experiments with synthetic observations;

  • calibration diagnostics and reporting.

Typical Command#

hmp run examples/projects/02_nancon_watershed/run_calibration_k.toml

Reference examples:

  • examples/projects/01_calibration/project.toml

  • examples/projects/02_nancon_watershed/run_calibration_k.toml

  • calibration pages under Calibration Benchmarks

Representative Results#

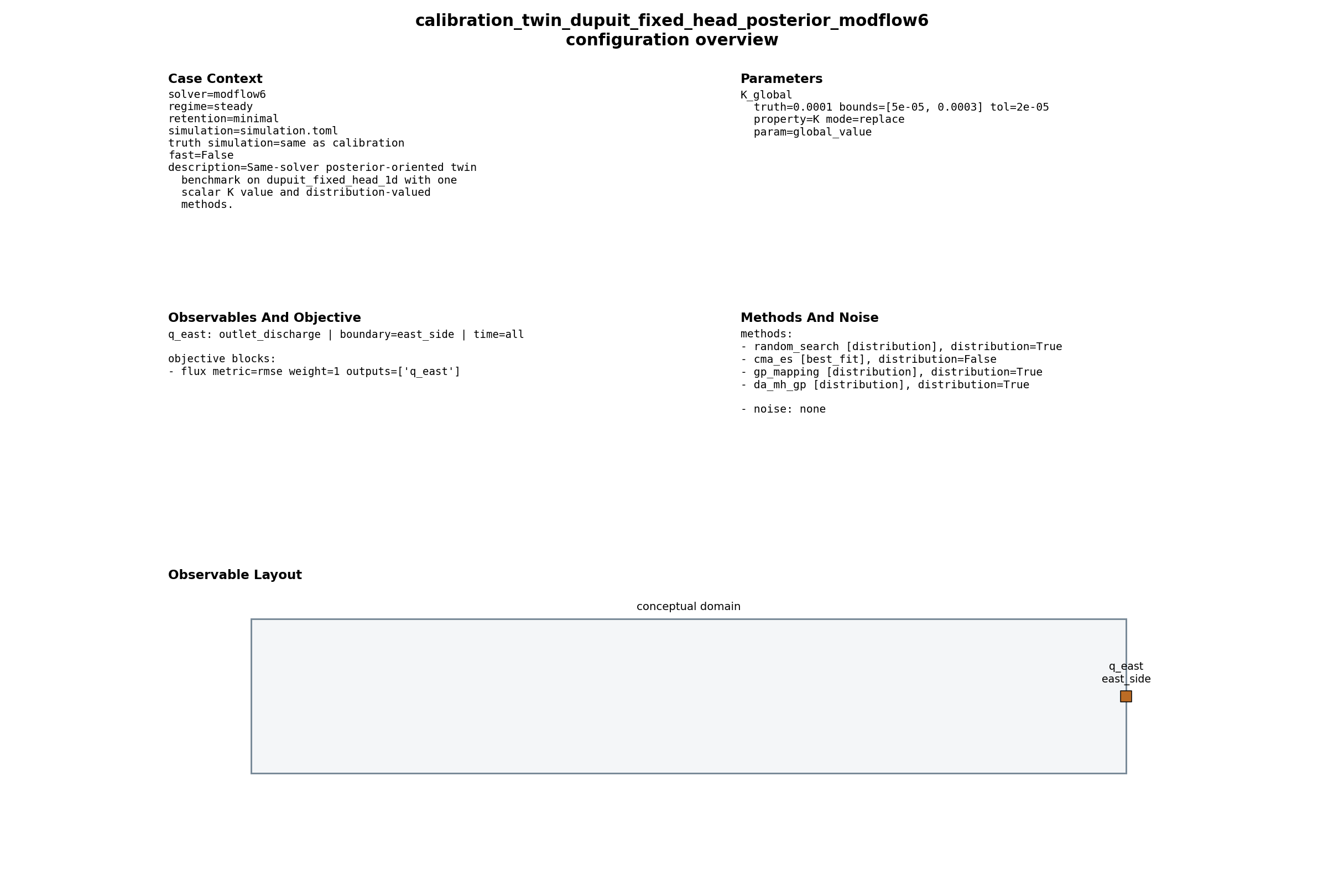

Calibration configuration figure
The configuration figure makes the inverse problem explicit: calibrated parameters, outputs, objective blocks, methods, and noise assumptions all stay visible in one panel.

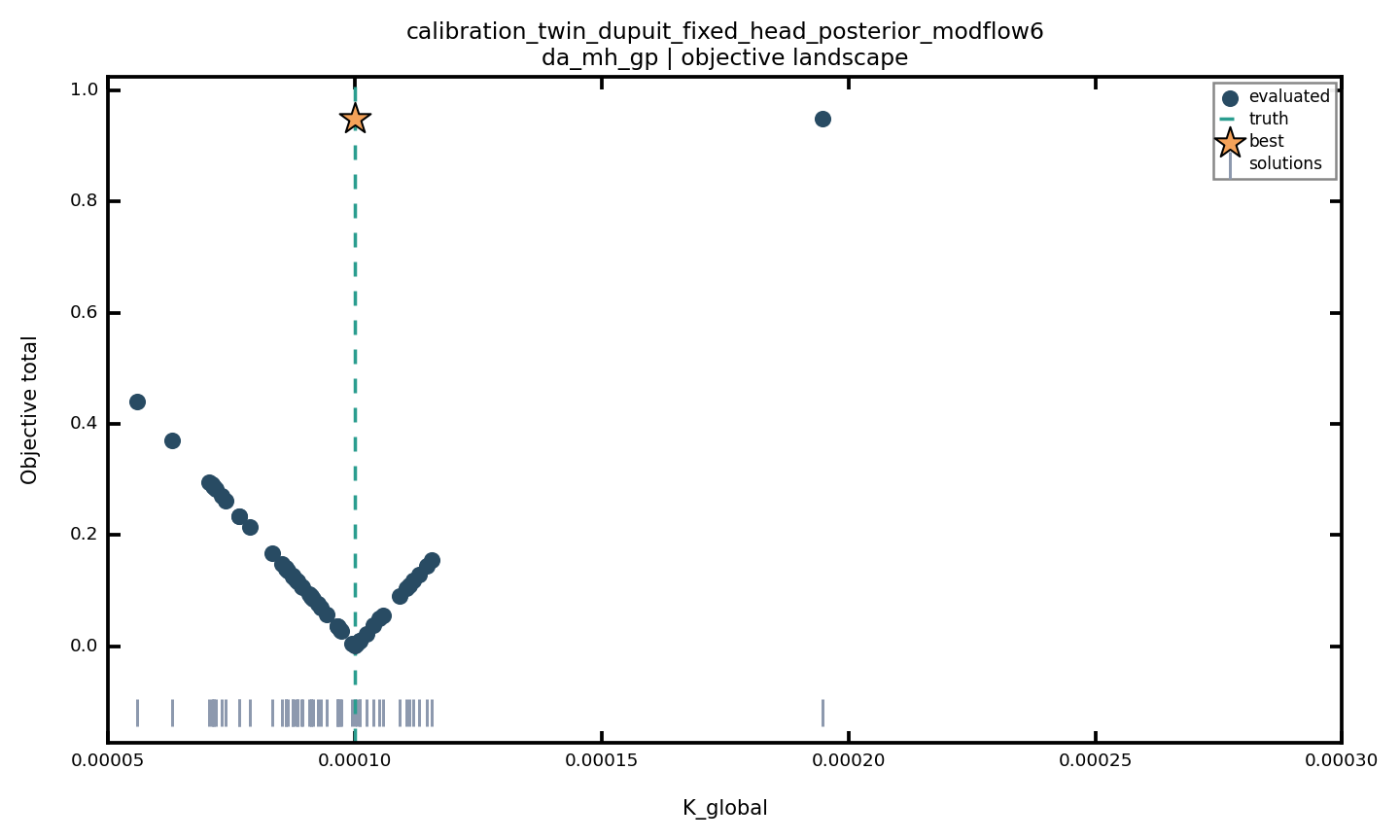

Calibration objective landscape for a distribution-valued method
The objective landscape or pairwise projection shows where the evaluated candidates concentrate relative to the truth and the selected solution.

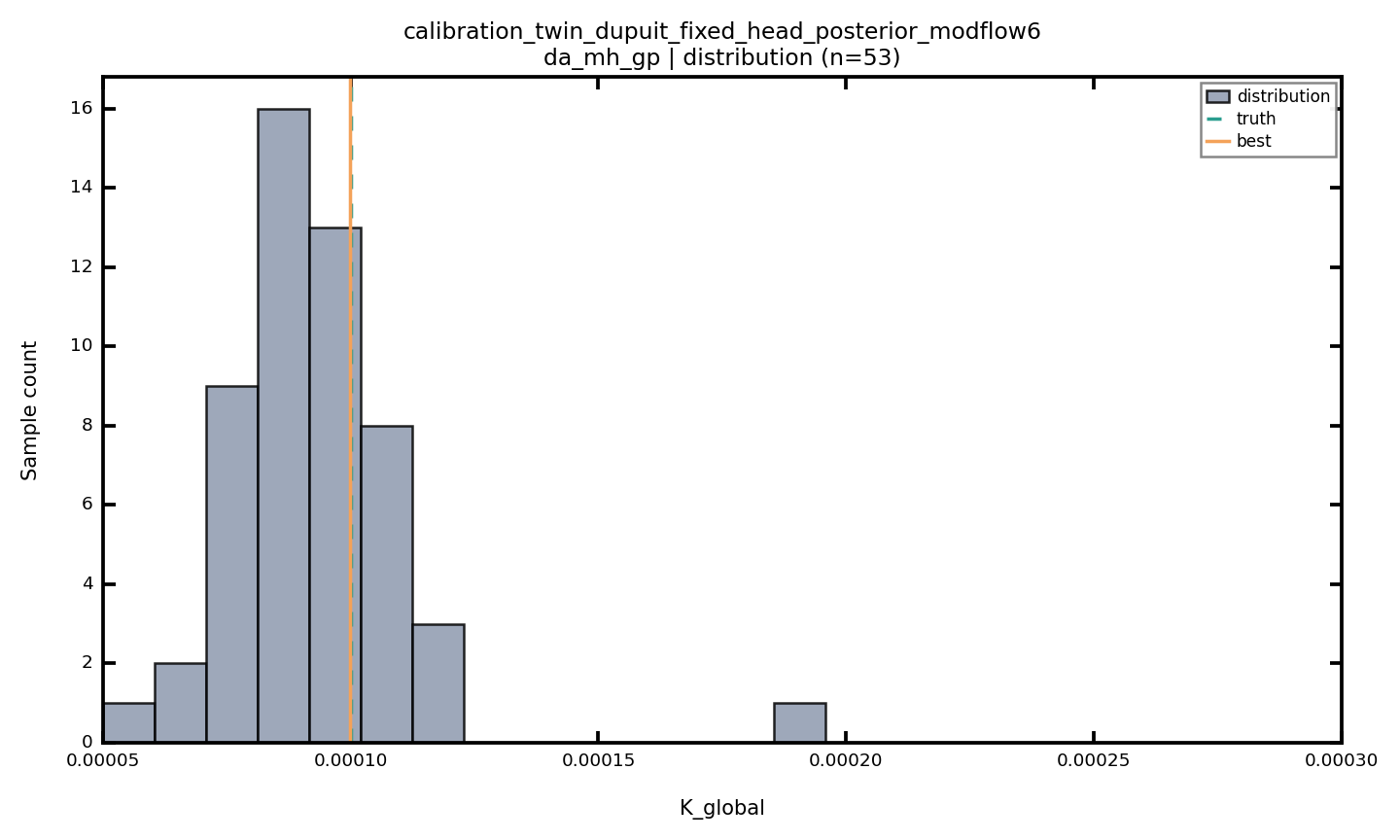

Calibration posterior distribution for a distribution-valued method
``da_mh_gp`` is currently the built-in method whose result is a parameter distribution. Its posterior figure shows the complete retained sample, not only the posterior mode or the best-fit candidate.

Pick A Method#

The [calibration].method field selects the optimizer. save_runs controls disk cost; best_n keeps every trial in the DuckDB trace but only promotes the top trials to full Zarr / Parquet stores.

Method

Typical budget

Determinism

When to pick it

grid

product of n_points

yes

1-2 parameters, exhaustive sweep

optuna (TPE default)

50-200

seed-dependent

General default, adapts as it explores

optuna (CMA-ES sampler)

100-500

seed-dependent

3+ continuous parameters

scipy_de

100-500

seed-dependent

Robust evolutionary alternative

scipy_nelder_mead

50-100

partial

Local refinement near a known optimum

Minimal Shape#

[workflow]
mode = "calibration"
base_config = "project.toml"

[simulation]
name = "nancon_calibration_k"

[simulation.time]
start_datetime = "2000-01-01"
end_datetime = "2002-12-31"
step_value = "1 month"

[[simulation.process]]
id = "flow_main"
type = "flow"
solvers = ["modflow_nwt"]

[calibration]
method = "optuna"
max_iter = 40
batch_size = 1
save_runs = "best_n"
save_best_n = 3
seed = 42
objective = "kge"
variable = "discharge"

[calibration.parameters.K]
bounds = [1e-6, 1e-3]
transform = "log"
prior = "log_uniform"
path = "flow.param.K.field.value"
units = "m/s"

Important Parameters#

Section / field

Role

Practical guidance

workflow

Selects the calibration launcher.

Must be "calibration".

base_config

Holds the fixed model configuration.

Keep geometry, solver family, and non-calibrated parameters in the base file.

[simulation]

Defines each candidate run window and process.

Calibration still needs a valid forward simulation definition.

[calibration].method

Selects optimizer or sampler.

optuna is the general default; grid/random/local-simplex/CMA-ES variants are useful for controlled benchmarks.

max_iter

Number of candidate evaluations.

Keep small for smoke tests; increase for production calibration.

batch_size

Number of suggestions per ask.

Current examples usually use 1 for sequential campaigns.

save_runs

Controls persistence cost.

none keeps history only, best_n promotes best candidates, all stores every candidate as a full simulation.

objective

Metric optimized by the default objective.

Use kge or nse for discharge-style calibration, rmse or mae for scale-dependent errors.

[calibration.parameters.*]

Declares bounds, transform, prior, and target config path.

The path must match the runtime configuration field that should be overwritten.

[calibration.outputs.*]

Optional explicit observable declarations.

Use for point, cell, or boundary outputs in richer calibration cases.

[[calibration.objective_blocks]]

Optional composite objective blocks.

Use when several observables or weighted metrics must be combined.

Parameter Declaration Example#

[calibration.parameters.K]
bounds = [1e-6, 1e-3]
transform = "log"
prior = "log_uniform"
path = "flow.param.K.field.value"
units = "m/s"

Use transform = "log" for strictly positive parameters spanning several orders of magnitude. Use mode = "scale" only when the sampled value should multiply an existing baseline rather than replace it.

Persistence Strategy#

save_runs

What is stored

When to use it

none

Calibration history, no full candidate stores.

Fast exploratory search.

best_n

History plus full outputs for the top save_best_n candidates.

Recommended default for practical calibration.

all

Every candidate becomes a full persisted simulation.

Debugging, small synthetic benchmarks, or audit-heavy studies.

Outputs To Inspect#

After a calibration run, inspect:

  1. configuration figure, so the inverse setup is explicit before reading scores;

  2. objective history or trace, to see convergence and failed regions;

  3. best parameter values;

  4. posterior or distribution figure when the method is distribution-valued;

  5. objective landscape or pairwise projection, to understand where candidates concentrate;

  6. promoted best-run outputs if save_runs = "best_n" or "all".
