Simulated Active Network#

Purpose#

The simulated active network is the part of the drainage support that becomes active because of the groundwater-flow solution.

It is not loaded from an external river file and it is not the DEM-derived generated hydrographic network. It is a post-processed signal derived from cell-by-cell simulated drainage outflow.

This page explains the three levels that should not be confused:

local drain outflow at each cell,
downstream accumulation of that outflow,
a thresholded or persistence-based active-network mask.

Conceptual Contract#

HydroModPy keeps the raw simulated drainage signal as cell fields before any vector network is declared.

For a steady-network question, distinguish the steady-flow scenario from the transient occupancy rule. A simulated steady active network should preferably be derived from a representative flow_regime = "steady" run, then compared with the observed reference network. The transient always_active mask only means active at all timesteps of the analysed chronicle.

Field or view	Meaning	How to read it
`outflow_drain`	Positive groundwater discharge through drains, summed over model layers.	Local source term. A positive value means that groundwater leaves the aquifer through the drain condition in that cell.
`accumulation_flux`	Downstream accumulation of positive drain discharge.	Network signal. High values mark cells that receive upstream active drainage contributions.
`cell_field_active_mask`	Boolean or continuous mask derived from `accumulation_flux`.	Display and metric layer. The threshold and time rule must be explicit.

The sign convention is intentionally normalized at the HydroModPy result level: outflow_drain is positive when water leaves the groundwater system. This is different from raw MODFLOW cell-budget records, where leaving the aquifer is usually stored with a negative sign.

Why Accumulation Is Not Just Another Drain Map#

outflow_drain and accumulation_flux answer different questions.

outflow_drain answers:

“Where does the model release water locally through the drainage package?”

accumulation_flux answers:

“If local drainage contributions are routed downslope through the mesh, which cells form the connected active drainage structure?”

This distinction matters because a downstream cell may have a small local drain outflow but a large accumulated flux if many upstream cells drain toward it. In figures, this usually makes confluences and persistent branches easier to see.

Where This Page Fits In The Examples#

Use this page as the MODFLOW 6 result-contract example. It shows how a solver run becomes an interpretable active-network diagnostic:

head -> outflow_drain -> accumulation_flux -> simulated_active_network

For the complete list of examples, commands, and files to open, see Worked Examples. For the current distinction between supported fields, demonstrated examples, and non-contracts, see Status And Limitations.

MODFLOW 6 Validation Example#

The following figures come from a real MODFLOW 6 run executed through the HydroModPy simulation workflow. The run has three stored timesteps and a structured 60 x 60 MODFLOW 6 support. The MODFLOW 6 extractor writes the solver mesh topology from the grid binary file, so the result layer can reshape fields on the solver grid instead of forcing the original DEM shape.

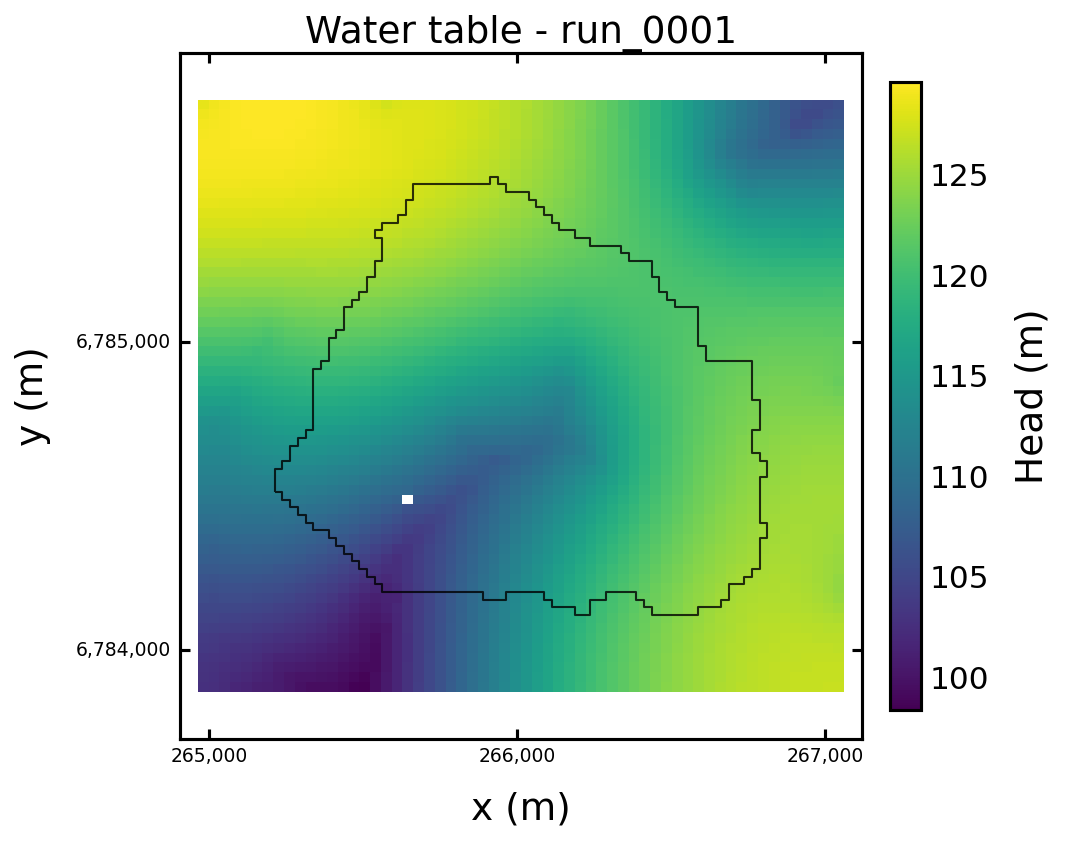

MODFLOW 6 water table map used as context for the simulated active network example — Fig. 28 Water-table field for the validation run. This is the groundwater state from which head-dependent drainage outflow is produced.#

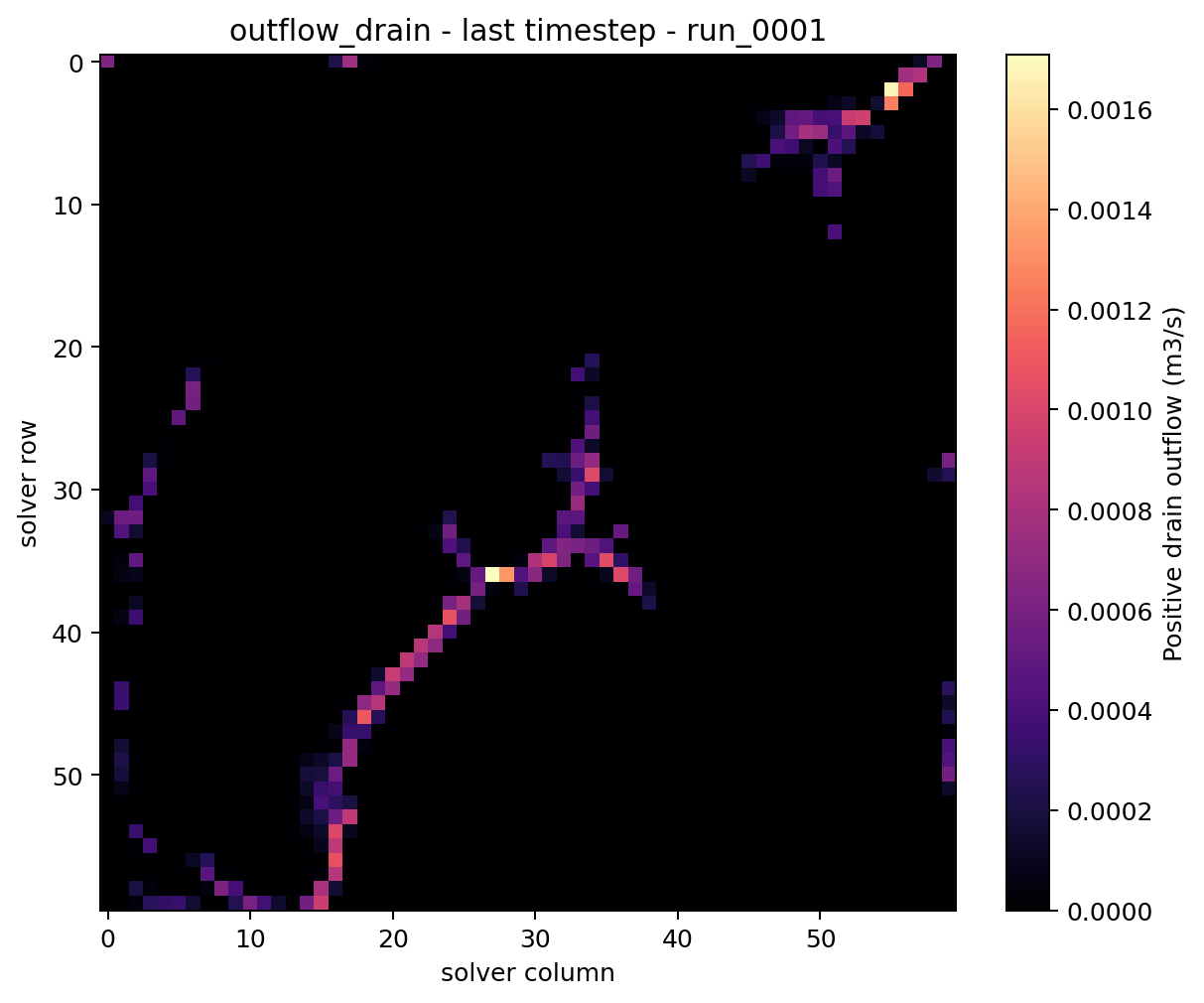

Positive local MODFLOW 6 drain outflow on the last timestep — Fig. 29 `outflow_drain` on the last timestep. The field is local and positive: it shows where groundwater leaves the aquifer through the drain condition.#

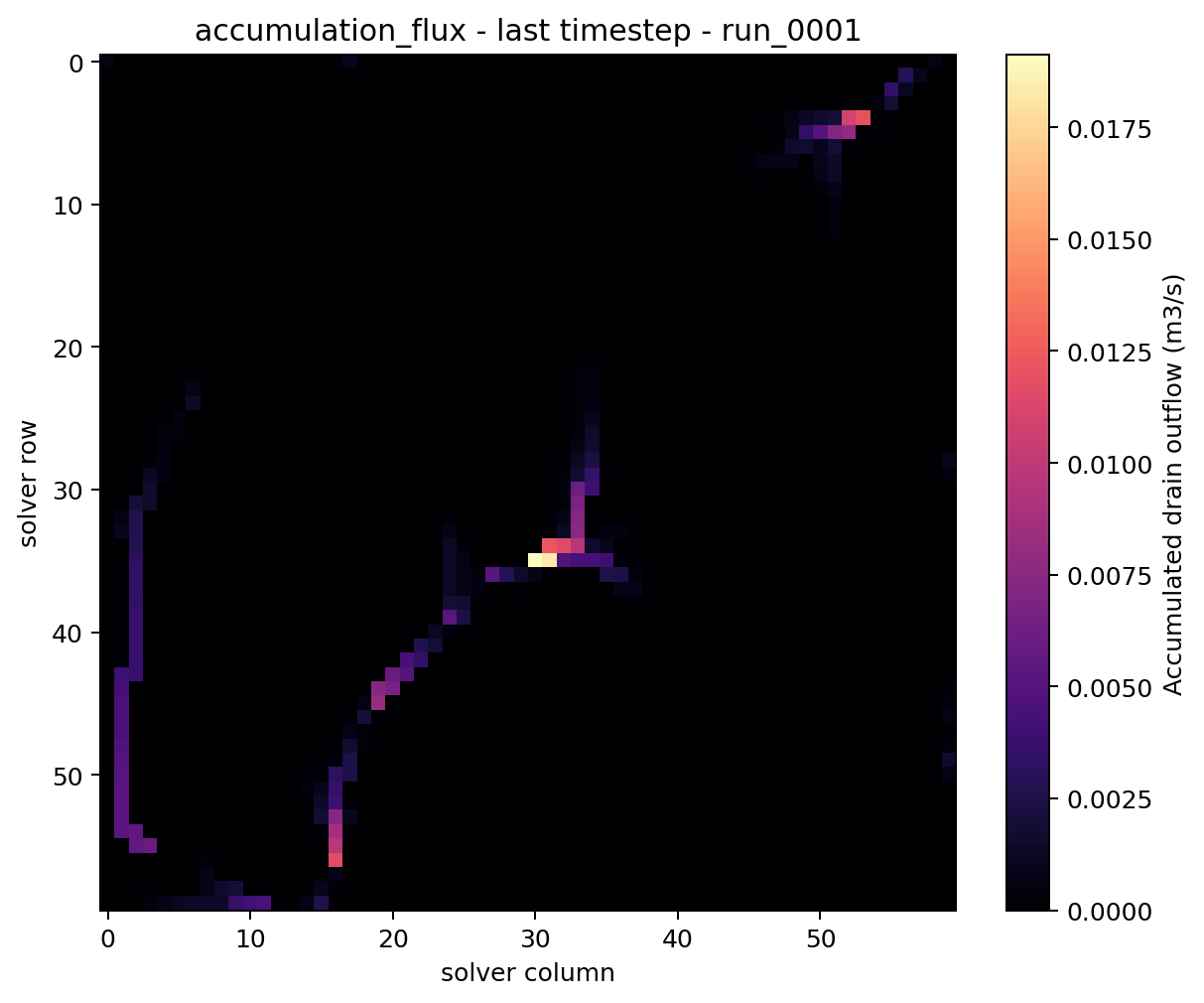

Downstream accumulated MODFLOW 6 drain outflow on the last timestep — Fig. 30 `accumulation_flux` on the last timestep. The spatial pattern follows the same active-drainage support, but values increase along downstream paths because upstream contributions are accumulated.#

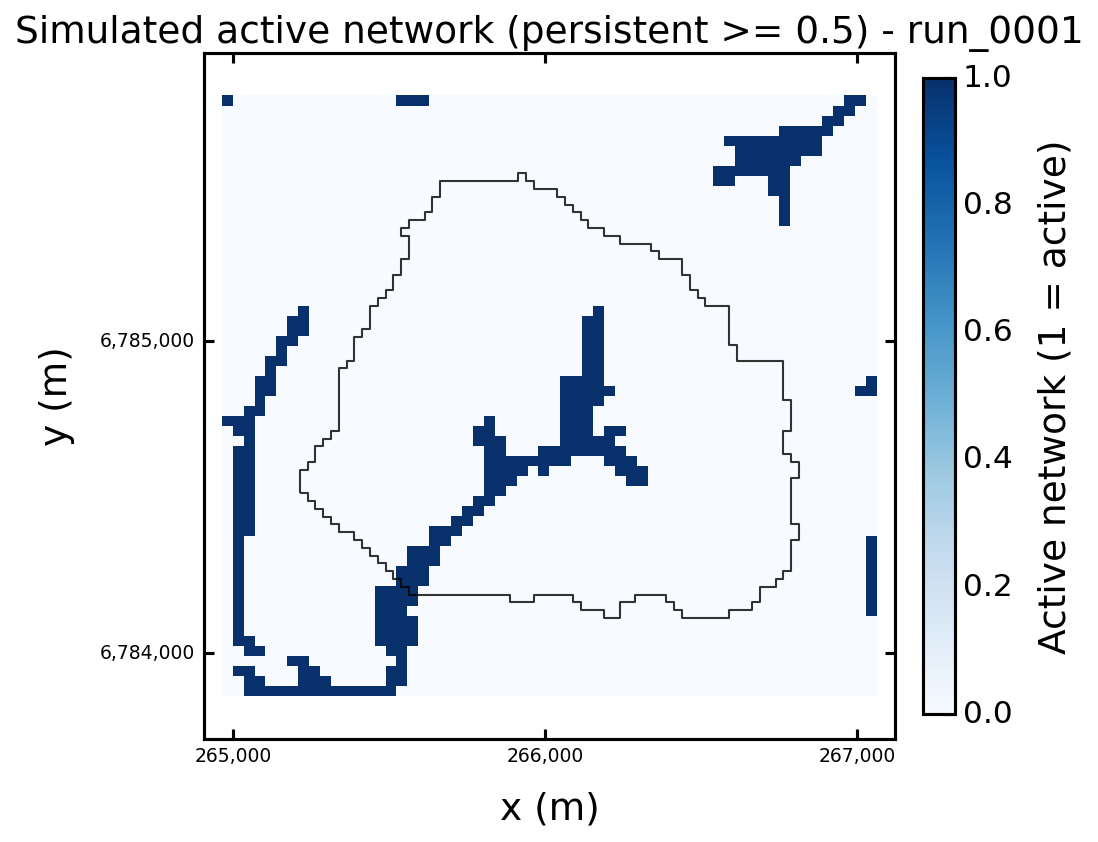

Thresholded simulated active network mask for the MODFLOW 6 validation run — Fig. 31 `simulated_active_network` figure. This is a computed cell-mask view produced from `accumulation_flux`. It is useful for inspection and comparison, but it is not yet a stored vector line network.#

For this validation run, the last timestep diagnostic summary was:

Field	Shape	Max	Sum	Non-zero cells
`outflow_drain`	`(3, 60, 60)`	`1.71e-3 m3/s`	`9.16e-2 m3/s`	`230`
`accumulation_flux`	`(3, 60, 60)`	`1.91e-2 m3/s`	`5.54e-1 m3/s`	`283`

Do not interpret the sum of accumulation_flux as a water-budget total. It is a routed network diagnostic: the same upstream water contribution may be counted again along downstream cells. Use budget tables and outflow_drain for mass-balance interpretation.

Current MODFLOW 6 Implementation Path#

For flow/modflow6, HydroModPy now uses the following result path:

MODFLOW 6 produces heads and budget components.
The output adapter reads the MODFLOW 6 grid binary file when available.
The catalog stores:
- mesh/vertices,
- mesh/face_node_connectivity,
- mesh/topography,
- mesh/z_interfaces.
The derived-field extractor converts raw DRN budget values to positive outflow_drain.
The extractor computes accumulation_flux:
- structured D8 routing when a regular raster support is available,
- mesh-graph downhill routing when a plottable face connectivity exists,
- local positive outflow as a conservative fallback.
Run.fields(...) returns fields on the solver support when that support differs from the geographic DEM grid.
The display layer enables simulated_active_network when both accumulation_flux and plottable mesh topology are present.

Programmatic Reading#

After a run is available through Run, inspect the fields directly:

acc = run.fields("accumulation_flux")
drn = run.fields("outflow_drain")

print(acc.shape)
print(drn[-1].max())

Render the active-network figure when the capability is available:

if "simulated_active_network" in run.display_capabilities:
    run.plot("simulated_active_network", save="figures")

Compare the same active-network view against the observed reference network when that role exists:

overlap = run.cell_field_network_overlap_metrics(
    network_role="reference",
    variable="accumulation_flux",
    mode="persistent",
    threshold=0.0,
    persistence_threshold=0.5,
)

distance = run.cell_field_network_distance_metrics(
    network_role="reference",
    variable="accumulation_flux",
    mode="persistent",
    threshold=0.0,
    persistence_threshold=0.5,
)

overlap gives coverage, precision, F1 and Jaccard on mesh cells. distance gives bidirectional planar cell-centroid distances. It is a current diagnostic, not the future downslope DEM-routing criterion.

For steady runs, do not pass a time mode unless you intentionally want to force a diagnostic snapshot. The default is the steady-state active-network field:

mask = run.cell_field_active_mask(
    variable="accumulation_flux",
    threshold=0.0,
)

For transient runs, select the time rule explicitly:

mask = run.cell_field_active_mask(
    variable="accumulation_flux",
    mode="persistent",
    threshold=0.0,
    persistence_threshold=0.5,
)

The main modes are:

last: active cells on one timestep;
any: active at least once;
persistent: active for at least a declared fraction of timesteps;
always_active: active at every analysed timestep;
persistence: continuous active-time fraction.

Use steady for the representative steady-flow concept. The transient always_active mode only means active at every stored timestep of the chosen analysis window, and should not be used as a synonym for a steady active network.

What This Is Not Yet#

The simulated active network is currently a computed cell-mask and metric layer. HydroModPy does not yet automatically persist a canonical vector feature named hydrographic_network_simulated_active.

That distinction is deliberate.

Before vectorization becomes a stable contract, the project still needs to choose:

the default activation threshold;
whether the canonical representation is one steady network, one transient summary, or several named networks;
how much simplification or line extraction should be applied;
whether the first canonical representation should be raster-like, vector-like, or both.

Until those choices are fixed, the safest interpretation is:

use outflow_drain for local drainage outflow and budget reasoning;
use accumulation_flux for active-branch detection;
use simulated_active_network figures and overlap metrics for inspection;
do not assume that a stored vector hydrographic-network role exists.
