Capability Gallery#
Note
This page and its static assets are auto-generated by python -m tools.doc_gallery. The Sphinx build only reads committed PNG and JSON artifacts.
This section groups a small set of static, versioned illustrations that explain what HydroModPy can do without requiring notebook execution during the documentation build.
See also
New to HydroModPy? Start with the getting started guide if you need help choosing a first workflow, reading the key parameters, or navigating the different example families.
Coverage Snapshot#
Category pages available today: 9.
Curated gallery cases available today: 87.
Most populated sections: Mesh Gallery (29), Validation Benchmarks (24), Simulation Comparison (8).
Five top-level categories#
The gallery is grouped into five top-level categories. Each card opens its own landing page with the case grid for that category.
1. Support
Pre-solver basin views, geometry diagnostics, and hydraulic-property fields. Start here when the question is still about the support, not the solver. 12 cases.

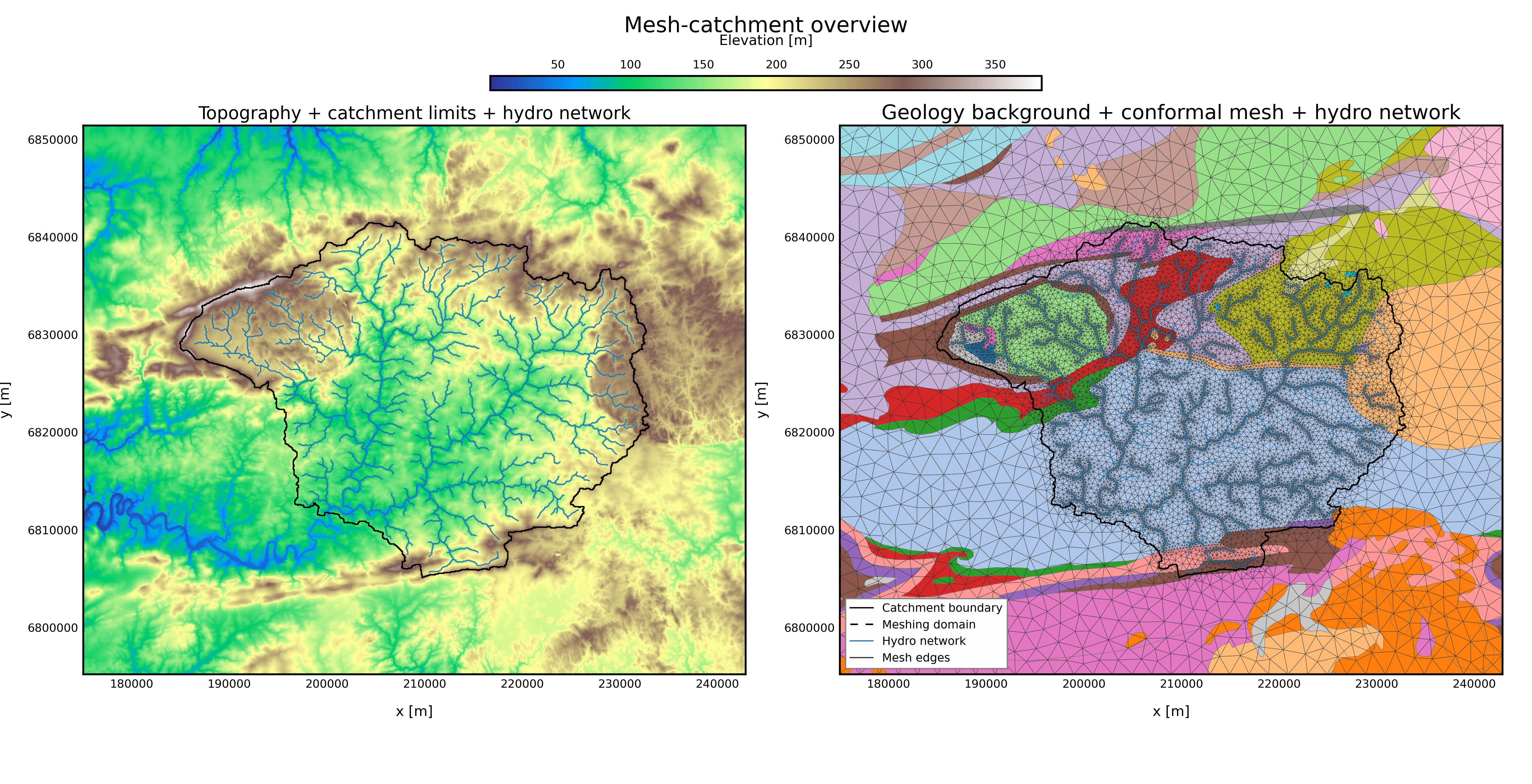

2. Mesh
Static mesh and geology illustrations produced from versioned bundle inputs. 29 cases.
3. Simulation
End-to-end solver runs, run-to-run comparisons on shared supports, and synthetic code-to-code benchmarks. 17 cases.

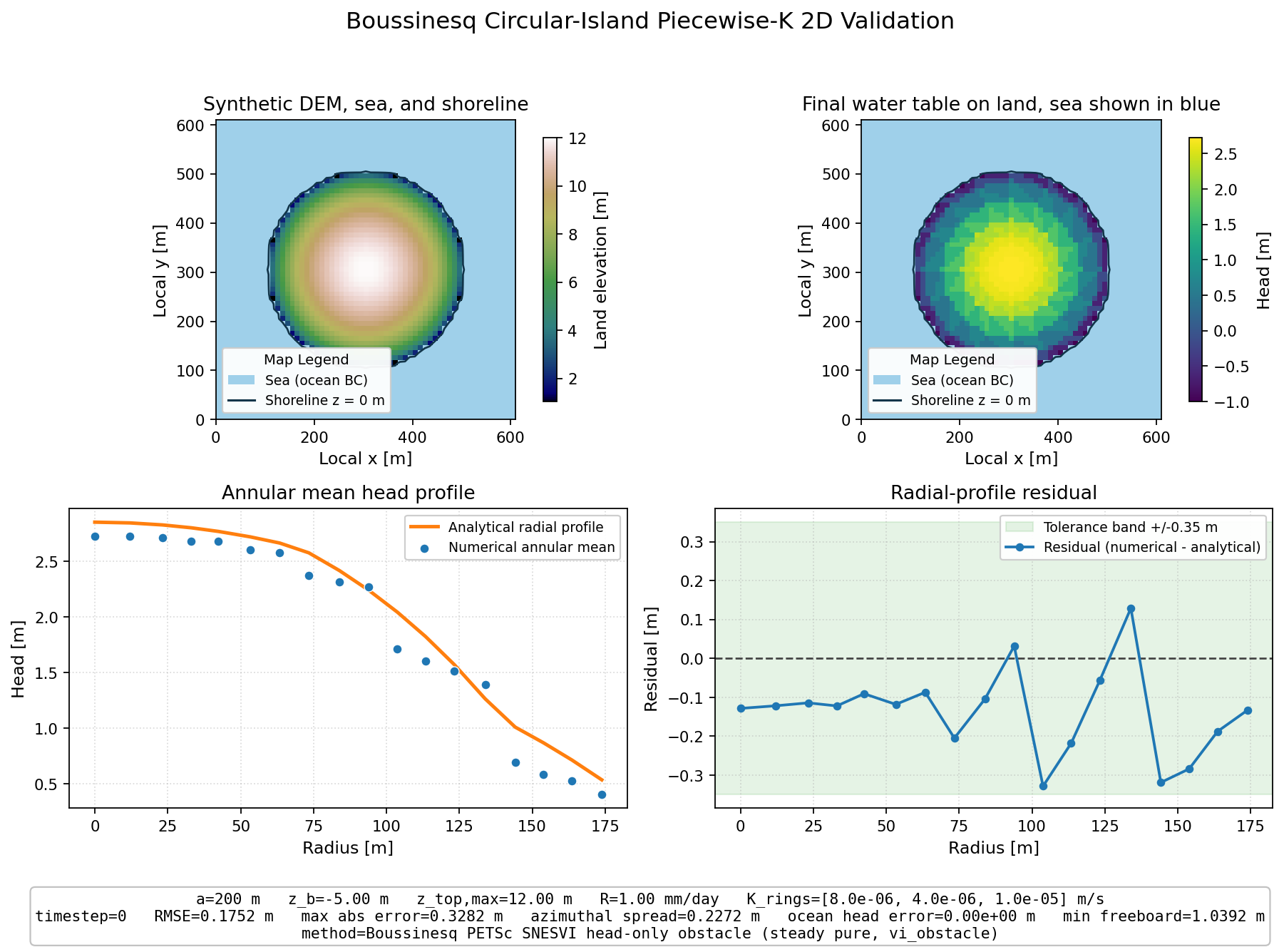

4. Validation
Analytical and semi-analytical comparisons rendered as reproducible teaching figures. 24 cases.

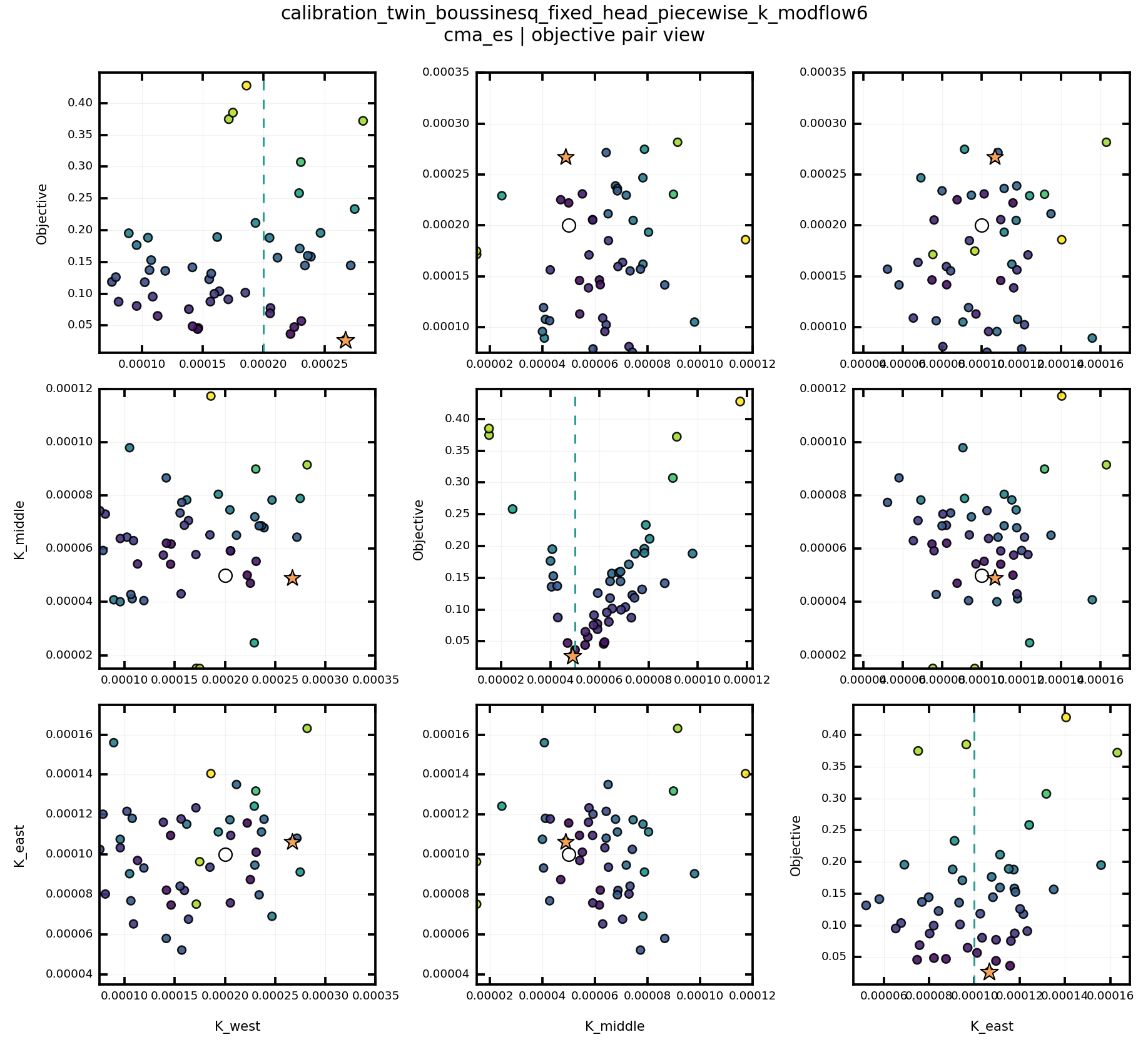

5. Calibration
Synthetic inverse problems used to inspect calibration workflows, search methods, and timing diagnostics. 5 cases.
Browse by category#
Each populated category opens its own landing page with the full case grid.
Mesh Gallery
Static mesh and geology illustrations produced from versioned bundle inputs. 29 cases.
Validation Benchmarks
Analytical and semi-analytical comparisons rendered as reproducible teaching figures. 24 cases.
Calibration Benchmarks
Synthetic inverse problems used to inspect calibration workflows, search methods, and timing diagnostics. 5 cases.

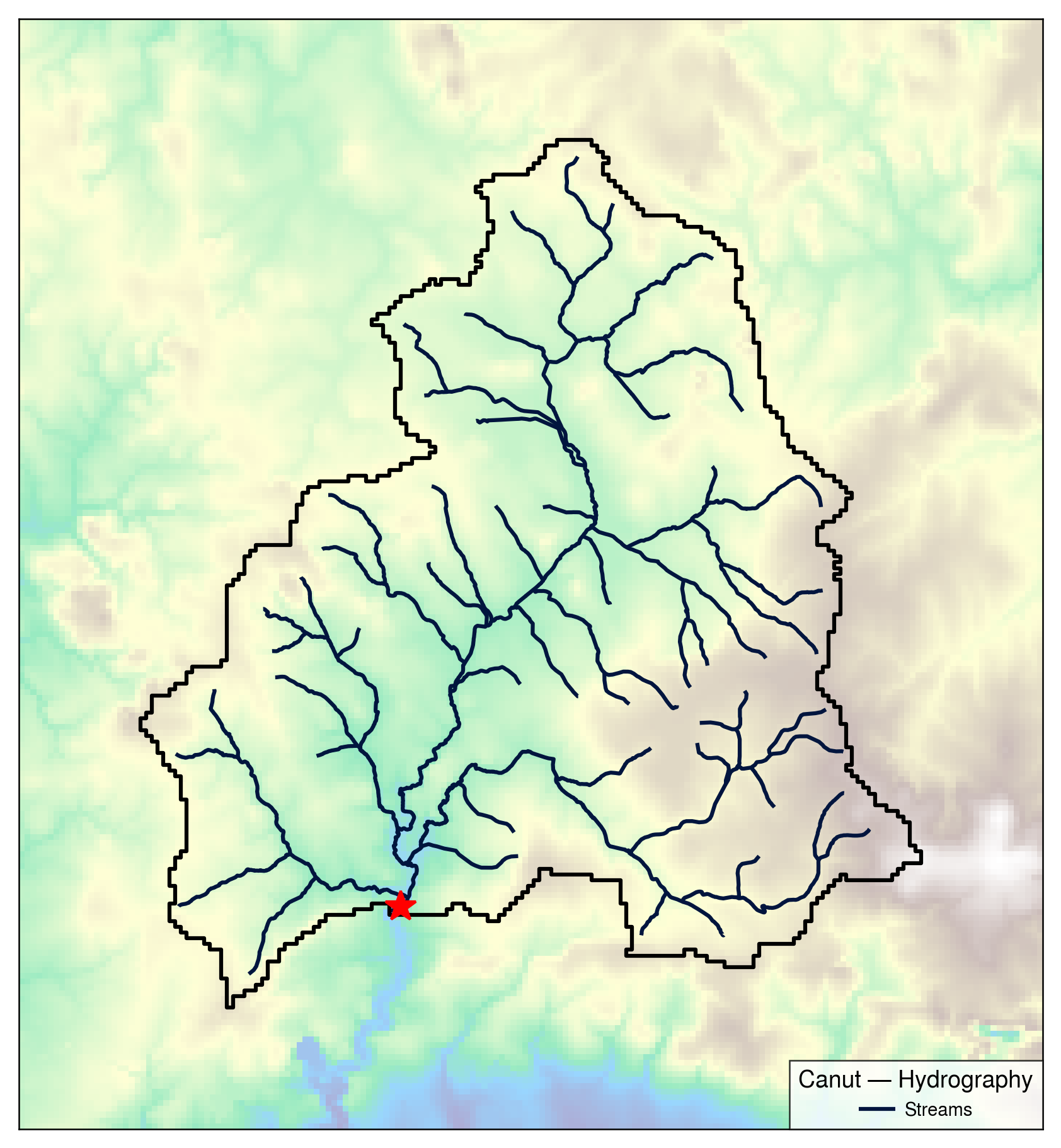

Data Overview
Pre-solver watershed and hydrography figures that explain how one domain is assembled before solving. 4 cases.
Geometry Diagnostics
Vector-only views of catchment geometry, hydrography, and geology layers. 3 cases.
Hydraulic Properties
Hydraulic conductivity and storage parameterizations rendered on synthetic and geology-driven supports. 5 cases.
Simulation Comparison
Reusable solver comparisons built from committed run folders on shared supports. 8 cases.
Code Comparison
Synthetic solver-to-solver benchmarks with no analytical truth claim. 2 cases.

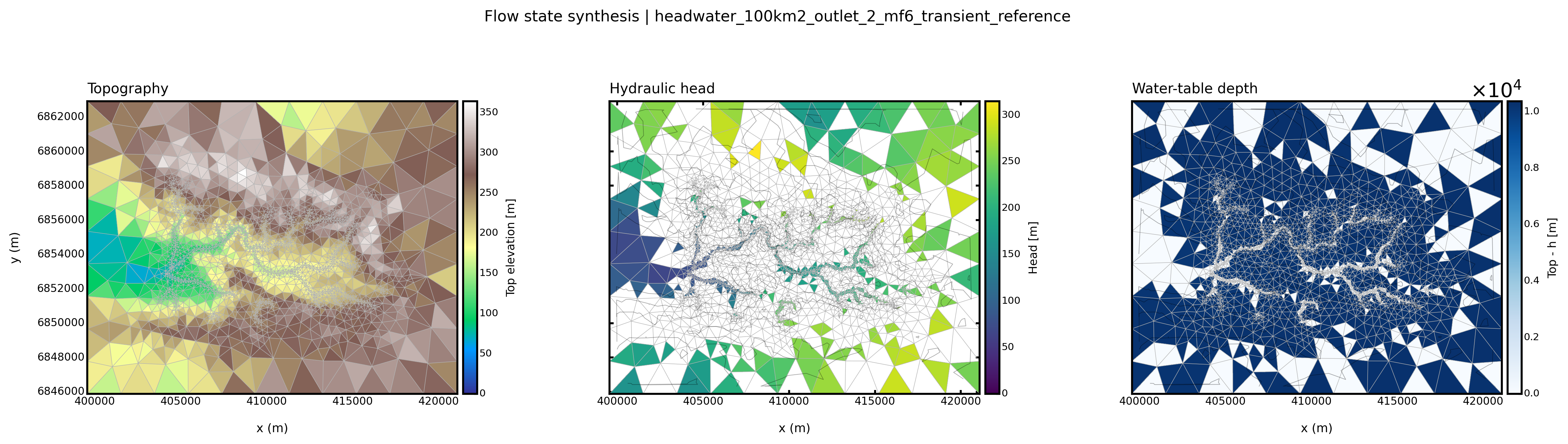

Simulation Workflows
End-to-end solver runs rendered as stable documentation artifacts. 7 cases.
All cases#
Looking for one specific case? Browse the flat index of all available gallery cases:
All cases
Flat sortable list of 87 cases with category, solver, and link to the case page.
