Mesh Zoom Panels (10 km2)#

Note

This page and its static assets are auto-generated by python -m tools.doc_gallery. The Sphinx build only reads committed PNG and JSON artifacts.

This case renders a full mesh overview and three deterministic zoom panels centered on dense river segments. It highlights local mesh structure without requiring new outputs.

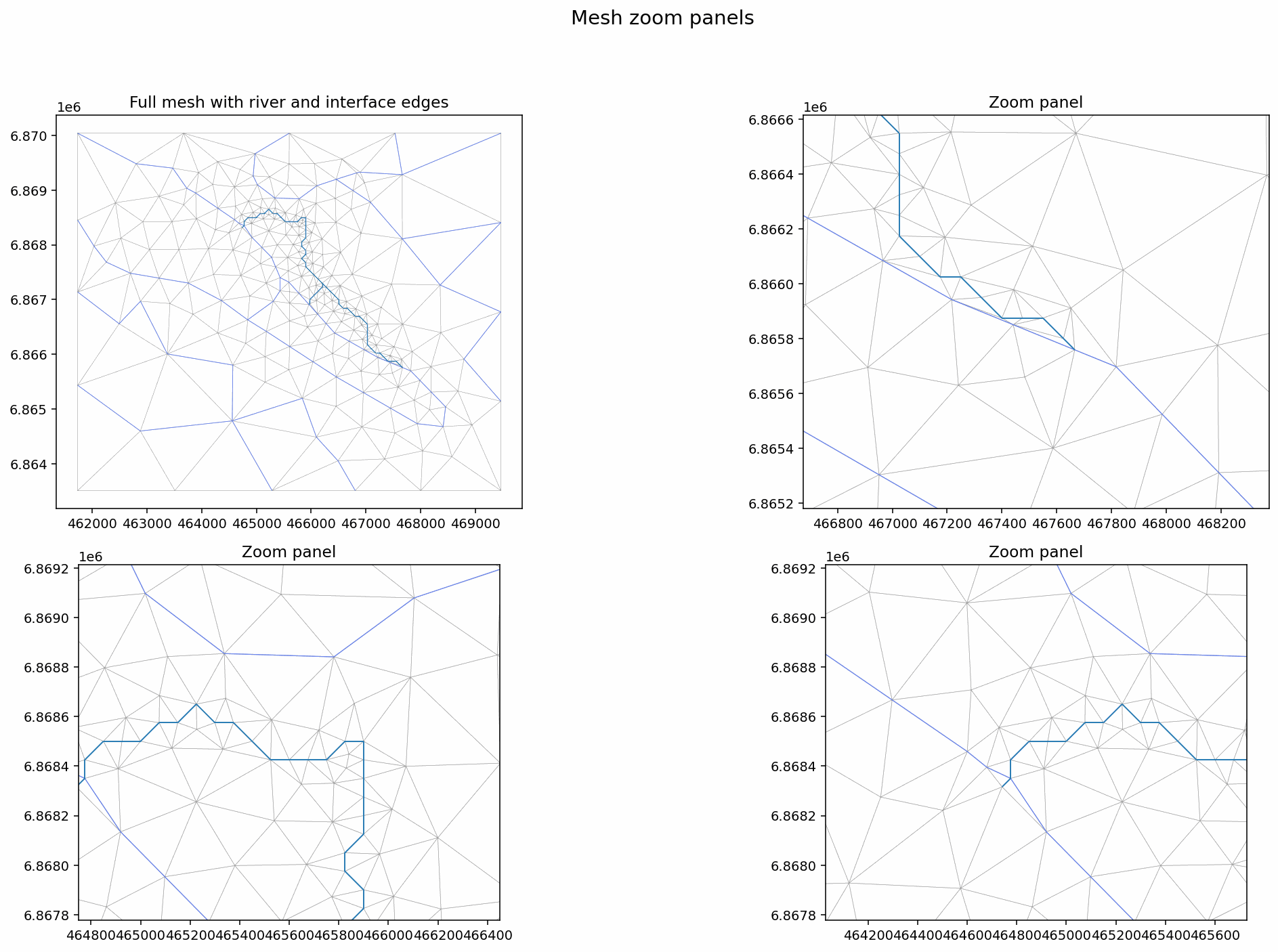

Mesh zoom panels for the 10 km2 catchment
Full mesh view with three river-focused zoom panels.

Case Setup#

  • Zoom centers chosen from river-edge density bins.

  • Mesh edges and river edges rendered for local inspection.

  • Deterministic selection ensures reproducible figures.

What It Shows#

  • Where rivers impose additional refinement on the mesh.

  • How local mesh density compares to the global view.

  • How fixed zooms can provide repeatable visual inspection points.

Key Metrics#

  • River edges: 65

  • Interface edges: 80

  • Zoom span: 1700 m

Reproduce#

Run the underlying example or validation case with:

python -m tools.doc_gallery

Refresh the committed gallery artifacts with:

python -m tools.doc_gallery

Case Parameters#

Bundle Inputs#

Field

Meaning

Value

Source

bundle_path

Versioned bundle used to compute or display the mesh-focused figure.

bundle

examples/projects/07_mesh_gallery/10km2/mesh_s3_10km2_outlet_1_geology_rivers_buffer30/bundle

Mesh Summary#

Field

Meaning

Value

Source

river_edge_count

Metric displayed on this page.

65

docs/source/_static/capability_gallery/mesh/mesh_zoom_panels_naizin_10km2_summary.json

interface_edge_count

Metric displayed on this page.

80

docs/source/_static/capability_gallery/mesh/mesh_zoom_panels_naizin_10km2_summary.json

zoom_span_m

Metric displayed on this page.

1700 m

docs/source/_static/capability_gallery/mesh/mesh_zoom_panels_naizin_10km2_summary.json

Source Pointers#

  • examples/projects/07_mesh_gallery/10km2/mesh_s3_10km2_outlet_1_geology_rivers_buffer30/bundle/nodes.csv

  • examples/projects/07_mesh_gallery/10km2/mesh_s3_10km2_outlet_1_geology_rivers_buffer30/bundle/cells.csv

  • examples/projects/07_mesh_gallery/10km2/mesh_s3_10km2_outlet_1_geology_rivers_buffer30/bundle/edges.csv

  • tools/doc_gallery/update_gallery.py

Artifacts#

  • docs/source/_static/capability_gallery/mesh/mesh_zoom_panels_naizin_10km2.png

  • docs/source/_static/capability_gallery/mesh/mesh_zoom_panels_naizin_10km2_summary.json stores the displayed metrics plus source hashes used by python -m tools.doc_gallery --check.
